Creating a VPN between a Cisco ASA and vCloud Air

20151211 - 1In preparation for an upcoming project with my resident Code Monkey, I decided it was time to link the lab to my vCloud Air instance using a VPN. However as GUI access to the firewalls are disabled in the lab, the on-premises configuration will have to be done using the CLI.

In the following example I assume you have configured a default routed network on vCloud Air, and have also deployed an Edge Gateway.

vCloud Air

In this example, I am using the following details (substitute accordingly):

  • Public IP: 92.246.244.211
  • Local network: 192.168.109.24/24
  • Peer network: 10.10.10.0/24

Connect to your vCloud Air instance and select Gateways. You should have already assigned a public IP:

Click Manage in vCloud Director.

An Edge Gateway should already be defined. Right-click and select Edge Gateway Services…

Click on the VPN tab.

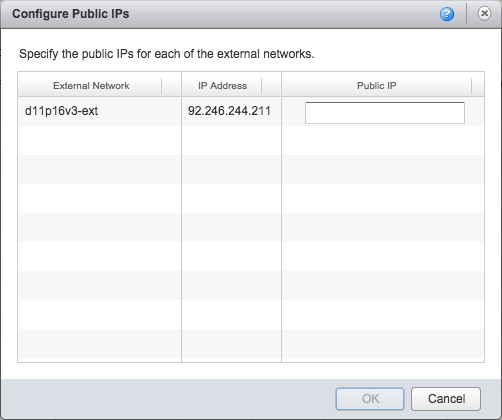

Check the box Enable VPN and click Public IPs…

20160104 - 2

Type the public IP shown into the box and click OK.

In the Configure Services: gateway box, click Add…

20160104 - 3

Type a name in the Name box, and select a remote network from the Establish VPN to drop-down box.

Click to select the local network, and then type the network address of your on-premises network in CIDR notation in the Peer Networks box.

In the Local ID box, type the public IP of your Edge Gateway (in my case 92.246.244.211):

20160104 - 4

In the Peer ID box, type the public IP of your firewall (in my case a Cisco ASA). Type the same IP address in the Peer IP box.

Finally, click the Show key box and make a copy of the pre-shared key.

Click OK, and then OK again. If configured correctly, the settings should look like:

20160104 - 5
Note: I have blanked out my peer ID and IP for security reasons.

Cisco ASA configuration

In this example, I am using the following details (substitute accordingly):

  • Local network: 10.10.10.0/24
  • Peer network: 192.168.109.0/24

Access the ASA’s command line interface. Enter configuration mode, create objects for the local (on-prem) and remote (vCloud Air) networks and an access list for the traffic:

conf t
object network net_vca
subnet 192.168.109.0 255.255.255.0
object network net_localnet
subnet 10.10.10.0 255.255.255.0
access-list local_to_vca line 1 extended permit ip 10.10.10.0 255.255.255.0 192.168.109.0 255.255.255.0

Create a group policy for the VPN using your vCloud Air public IP:

group-policy 92.246.244.211 internal
group-policy 92.246.244.211 attributes
vpn-tunnel-protocol ikev2 ikev1
exit

Configure the tunnel group properties:

tunnel-group 92.246.244.211 type ipsec-l2l
tunnel-group 92.246.244.211 general-attributes
default-group-policy 92.246.244.211
tunnel-group 92.246.244.211 ipsec-attributes

Configure the pre-shared key, using the one copied earlier from vCloud Air:

ikev1 pre-shared-key abcdefghijklmnopqrstuvwxyz12345678
ikev2 local-authentication pre-shared-key abcdefghijklmnopqrstuvwxyz12345678
ikev2 remote-authentication pre-shared-key abcdefghijklmnopqrstuvwxyz12345678

Define the keepalive:

isakmp keepalive threshold 10 retry 2

Configure the crypto map entries:

crypto map outside_map 1 match address local_to_vca
crypto map outside_map 1 set peer 92.246.244.211
crypto map outside_map 1 set ikev1 transform-set ESP-AES-128-SHA ESP-AES-128-MD5 ESP-AES-192-SHA ESP-AES-192-MD5 ESP-AES-256-SHA ESP-AES-256-MD5 ESP-3DES-SHA ESP-3DES-MD5
crypto map outside_map 1 set ikev2 ipsec-proposal DES 3DES AES AES192 AES256
crypto map outside_map 1 set pfs group2

The vCloud Air Edge Services Gateway supports Triple-DES as a minimum, but if your ASA supports AES-256 then the above transform set can be tightened up a bit.

Lastly, configure NAT:

nat (inside,outside) source static net_localnet net_localnet destination static net_vca net_vca no-proxy-arp route-lookup

vCloud Air firewall rules

The last thing to do is to enable the firewall rules on the vCloud Air side to allow traffic to pass from our on-premises network to the default-routed-network (and vice-versa).

As this is a lab environment, I plan to allow the following:

  • TCP/UDP in & out
  • ICMP in & out

In total that should be four rules.

Back in vCloud Director, select your vDC and then click on the Edge Gateways tab. Right-click the gateway and click Edge Gateway Services. Next, click on the Firewall tab.

Check the Enable firewall box, then click Add…

20160104 - 6

Enter a name for the rule, and specify the Source as the default-routed-network subnet in CIDR notation:

20160104 - 7

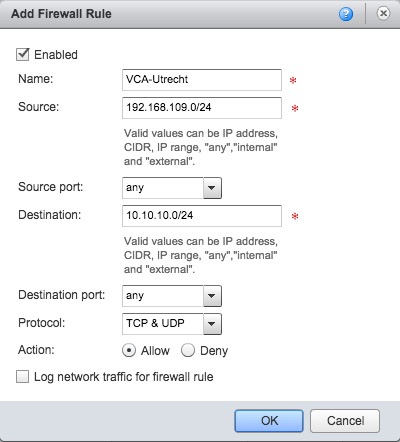

In the Destination field, specify your on-premises subnet. Select TCP & UDP from the Protocol drop-down box:

20160104 - 8

Click OK.

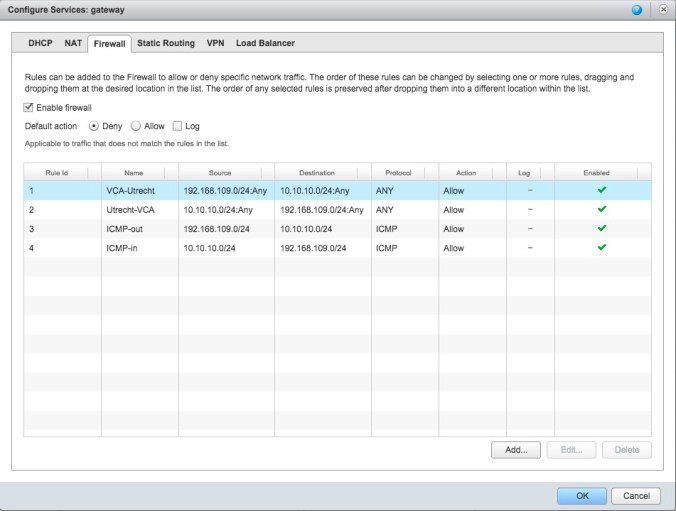

Repeat the above steps for the remaining rules. Once done, the rules should look something like this:

20160104 - 9

Lastly, click OK.

You should now be able to pass traffic between your on-premises network and your vCloud Air network.
